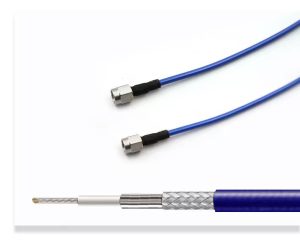

Series Z

Low Loss and Ultra-Flexible Cables

Key Features:

Stranded inner conductor, Ultra-flexible cable

Resistant to harsh outdoor environments

Applications:

Test and Measurement, Phase Array Radar, Mobile Device.

PN	Freq.(GHz)	Max. Attn.(dB/m)	Max.Power(W)	Outer Dia.(mm)	Shielding(dB.min)	Temperature(°C)
FS360Z	40	3.89	16	3.60	90	-55~+85 °C
FS500Z	26.5	2.52	23	5.00	90	-55~+85 °C
FS600Z	26.5	1.67	30	6.00	90	-55~+85 °C
FS800Z	18	1.02	58	8.00	90	-55~+85 °C
