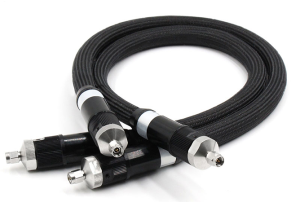

Series VN
VNA Test Cables & Assemblies
Fasnwave’s VN Series VNA cables & assemblies are designed for high-precision VNA test. They support frequencies up to 110 GHz and offer customizable lengths.
Key features:
Reinforced NMD connectors
Optimized mechanical structure
Low VSWR & IL
Phase and amplitude stability
Applications:
Laboratories, Production lines, And microwave test systems
| PN | Freq.(GHz) | Amp. Δ vs Bend(Max.) | Phase Δ vs Bend(Max.) | Outer Dia.(mm) | Shielding(dB.min.) | Temperature(°C) |
|---|
| PN | Freq.(GHz) | Amp. Δ vs Bend(Max.) | Phase Δ vs Bend(Max.) | Outer Dia.(mm) | Shielding(dB.min.) | Temperature(°C) |
|---|---|---|---|---|---|---|
| FSVN110 | 110 | ±0.15dB | ±9.0° | 8 | 90 | -55~+105°C |
| FSVN67 | 67 | ±0.08dB | ±6.7° | 15.2 | 90 | -55~+105°C |
| FSVN50 | 50 | ±0.05dB | ±7° | 15.2 | 90 | -55~+105°C |
| FSVN40 | 40 | ±0.04dB | ±4° | 15.2 | 90 | -55~+105°C |
| FSVN26 | 26.5 | ±0.03dB | ±2.7° | 15.2 | 90 | -55~+105°C |
| FSVN18 | 18 | ±0.03dB | ±2.4° | 15.2 | 90 | -55~+105°C |
