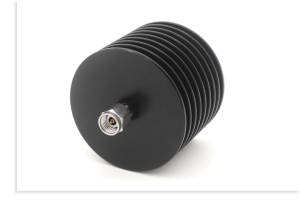

Terminations
Fasnwave offers a wide range of RF and Microwave Terminations (Loads) operating up to 67 GHz. Designed to absorb RF power with high precision and low VSWR, they ensure system stability and protect equipment from signal reflections. They are widely used in RF testing, radar, 5G, and satellite systems.
| PN | Freq.(GHz) | Power(W) | VSWR(max.) | Connector |
|---|
| PN | Freq.(GHz) | Power(W) | VSWR(max.) | Connector |
|---|---|---|---|---|
| FSCT5-67-V | DC~67 | 5 | 1.35 | 1.85mm |
| FSCT2-67-V | DC~67 | 2 | 1.30 | 1.85mm |
| FSCT5-50-2 | DC~50 | 5 | 1.30 | 2.4mm |
| FSCT2-50-2 | DC~50 | 2 | 1.20 | 2.4mm |
| FSCT50-40-K | DC-40 | 50 | 1.35 | 2.92mm |
| FSCT30-40-K | DC-40 | 30 | 1.30 | 2.92mm |
| FSCT20-40-K | DC-40 | 20 | 1.30 | 2.92mm |
| FSCT10-40-K | DC-40 | 10 | 1.25 | 2.92mm |
| FSCT5-40-K | DC-40 | 5 | 1.25 | 2.92mm |
| FSCT2-40-K | DC-40 | 2 | 1.20 | 2.92mm |
| FSCT50-26.5-S | DC-26.5 | 50 | 1.30 | SMA |
| FSCT30-26.5-S | DC-26.5 | 30 | 1.30 | SMA |
| FSCT20-26.5-S | DC-26.5 | 20 | 1.30 | SMA |
| FSCT10-26.5-S | DC-26.5 | 10 | 1.25 | SMA |
| FSCT5-26.5-S | DC-26.5 | 5 | 1.25 | SMA |
| FSCT2-26.5-S | DC-26.5 | 2 | 1.25 | SMA |
| FSCT500-18-N | DC-18 | 500 | 1.45 | N |
| FSCT200-18-N | DC-18 | 200 | 1.45 | N |
| FSCT100-18-S | DC-18 | 100 | 1.35 | SMA |
| FSCT100-18-N | DC-18 | 100 | 1.35 | N |
| FSCT50-18-N | DC-18 | 50 | 1.40 | N |
| FSCT50-18-S | DC-18 | 50 | 1.40 | SMA |
| FSCT30-18-N | DC-18 | 30 | 1.40 | N |
| FSCT30-18-S | DC~18 | 30 | 1.40 | SMA |
| FSCT20-18-N | DC-18 | 20 | 1.40 | N |
| FSCT10-18-N | DC-18 | 10 | 1.30 | N |
| FSCT10-18-S | DC-18 | 10 | 1.30 | SMA |
| FSCT5-18-N | DC-18 | 5 | 1.30 | N |
| FSCT5-18-S | DC-18 | 5 | 1.30 | SMA |
| FSCT2-18-N | DC-18 | 2 | 1.30 | N |
| FSCT2-18-S | DC-18 | 2 | 1.30 | SMA |
| FSCT2-18-S-C | DC-18 | 2 | 1.25 | SMA |
| FSCT1K-4-N | DC-4 | 1000 | 1.40 | N |
