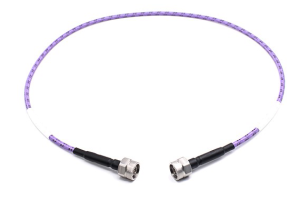

Series TR
High Precision Test Cables & Assemblies

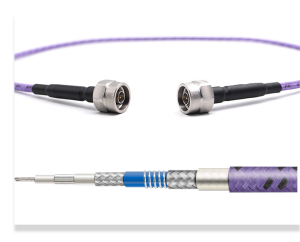

Fasnwave’s TR series test cables feature an integrated armored structure with multi-layer protection. Frequency is up to 110 GHz and length is customizable.
Key Features:
Stable phase & amplitude performance
Integrated armored design with long bending life
Low VSWR and low insertion loss
Applications:
VNA testing, microwave labs, production line testing, and automated test systems.
| PN | Freq.(GHz) | Max. Attn.(dB/m) | Max.Power(W) | Outer Dia.(mm) | Shielding(dB.min) | Temperature(°C) |
|---|
| PN | Freq.(GHz) | Max. Attn.(dB/m) | Max.Power(W) | Outer Dia.(mm) | Shielding(dB.min) | Temperature(°C) |
|---|---|---|---|---|---|---|
| FS110TR | 110 | 13.14 | 3 | 3.90 | 90 | -55~+125 °C |
| FS67TR | 67 | 5.93 | 12 | 4.80 | 90 | -55~+125 °C |
| FS50TR | 50 | 3.59 | 68 | 6.10 | 90 | -55~+125 °C |
| FS26TR | 26.5 | 1.59 | 140 | 7.60 | 90 | -55~+125 °C |
| FS18TR | 18 | 0.75 | 356 | 10.40 | 90 | -55~+125 °C |
