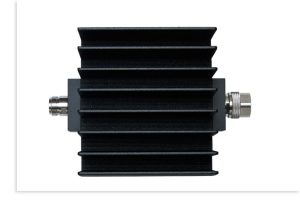

Fixed Attenuators
Fasnwave offers a comprehensive range of 50Ω fixed attenuators supporting frequencies up to 110 GHz. Multiple attenuation values and power levels are available to meet diverse system requirements. These attenuators deliver low VSWR and high attenuation accuracy, and are widely used in RF/microwave test systems, power leveling, and system protection.
| PN | Freq.(GHz) | Power(W) | Attenuation(dB) | VSWR | Connector |
|---|
| PN | Freq.(GHz) | Power(W) | Attenuation(dB) | VSWR | Connector |
|---|---|---|---|---|---|
| FSFA1-110-XX-W | DC~110 | 1 | 3/6/10 | 1.6 | 1.0mm |
| FSFA10-67-XX-V | DC-67 | 10 | 10/20/30 | 1.45 | 1.85mm |
| FSFA5-67-XX-V | DC~67 | 5 | 1~10/20/30 | 1.40 | 1.85mm |
| FSFA2-67-XX-V | DC~67 | 2 | 1~10/20/30 | 1.35 | 1.85mm |
| FSFA10-50-XX-2 | DC-50 | 10 | 1~10/20/30 | 1.40 | 2.4mm |
| FSFA5-50-XX-2 | DC~50 | 5 | 1~10/20/30 | 1.30 | 2.4mm |
| FSFA2-50-XX-2 | DC~50 | 2 | 1~10/20/30 | 1.30 | 2.4mm |
| FSFA100-40-XX-K | DC~40 | 100 | 20/30/40/50 | 1.40 | 2.92mm |
| FSFA50-40-XX-K | DC~40 | 50 | 20/30/40 | 1.35 | 2.92mm |
| FSFA30-40-XX-K | DC~40 | 30 | 20/30/40 | 1.35 | 2.92mm |
| FSFA20-40-XX-K | DC~40 | 20 | 3~10/20/30/40 | 1.30 | 2.92mm |
| FSFA10-40-XX-K | DC~40 | 10 | 1~10/20/30 | 1.25 | 2.92mm |
| FSFA5-40-XX-K | DC~40 | 5 | 1~10/20/30 | 1.25 | 2.92mm |
| FSFA2-40-XX-K | DC~40 | 2 | 1~10/20/30 | 1.25 | 2.92mm |
| FSFA50-26.5-XX-S | DC~26.5 | 50 | 20/30/40 | 1.30 | SMA |
| FSFA30-26.5-XX-S | DC~26.5 | 30 | 20/30/40 | 1.30 | SMA |
| FSFA20-26.5-XX-S | DC~26.5 | 20 | 10/20/30 | 1.30 | SMA |
| FSFA10-26.5-XX-S | DC~26.5 | 10 | 1~10/20/30 | 1.25 | SMA |
| FSFA5-26.5-XX-S | DC~26.5 | 5 | 1~10/20/30 | 1.25 | SMA |
| FSFA2-26.5-XX-S | DC~26.5 | 2 | 1~10/20/30/40 | 1.30 | SMA |
| FSFA500-18-XX-N | DC~18 | 500 | 10/20/30/40/50/60 | 1.45 | N |
| FSFA400-18-XX-N | DC~18 | 400 | 20/30/40/50~60 | 1.45 | N |
| FSFA300-18-XX-N | DC~18 | 300 | 10/20/30/40/50/60 | 1.45 | N |
| FSFA250-18-XX-N | DC~18 | 250 | 10/20/30/40/50~60 | 1.45 | N |
| FSFA200-18-XX-N | DC~18 | 200 | 10/20/30/40/50~60 | 1.45 | N |
| FSFA100-18-XX-N | DC~18 | 100 | 6~10/20/30/40/50~60 | 1.45 | N |
| FSFA100-18-XX-S | DC~18 | 100 | 6~10/20/30/40/50~70 | 1.45 | SMA |
| FSFA50-18-XX-N | DC~18 | 50 | 1~10/20/30/40~50 | 1.45 | N |
| FSFA50-18-XX-S | DC~18 | 50 | 1~10/20/30/40~50 | 1.45 | SMA |
| FSFA30-18-XX-N | DC~18 | 30 | 1~10/20/30/40/50~60 | 1.45 | N |
| FSFA30-18-XX-S | DC~18 | 30 | 1~60 | 1.45 | SMA |
| FSFA20-18-XX-N | DC~18 | 20 | 1~50 | 1.45 | N |
| FSFA20-18-XX-S | DC~18 | 20 | 1~40 | 1.35 | SMA |
| FSFA10-18-XX-N | DC~18 | 10 | 1~60 | 1.45 | N |
| FSFA10-18-XX-S | DC~18 | 10 | 1~40 | 1.35 | SMA |
| FSFA5-18-XX-N | DC~18 | 5 | 1~10/20/30/40/50/60 | 1.35 | N |
| FSFA5-18-XX-S | DC~18 | 5 | 1~30 | 1.30 | SMA |
| FSFA2-18-XX-N | DC~18 | 2 | 1~10/20/30/40/50/60 | 1.35 | N |
| FSFA2-18-XX-S | DC~18 | 2 | 1~60 | 1.30 | SMA |
| FSFA100-8-XX-N-1 | DC~8 | 100 | 10/20/30 | 1.30 | N |
| FSFA100-8-XX-S-1 | DC~8 | 100 | 10/20/30 | 1.30 | SMA |
| FSFA1K-6-XX-N | DC~6 | 1000 | 30/40/50/60 | 1.45 | N |
| FSFA100-6-XX-N | DC~6 | 100 | 10/20/30/40/50 | 1.40 | N |
| FSFA2K-3-XX-L29 | DC~3 | 2000 | 20/30/40/50 | 1.40 | L29 |
