Circulators & Isolators
Fasnwave offers a comprehensive range of RF and microwave circulators and isolators with operating frequencies up to 40 GHz. Designed for low insertion loss, high isolation, low VSWR, and high power handling, these products deliver reliable performance in commercial, defense, avionics, and space applications. Standard and custom solutions are available to meet specific requirements for frequency range, bandwidth, power handling, connector type, package configuration, operating temperature, and circulation direction.
| Part Number | Frequency(GHz) | Band Width (% Max.) | IL (dB Max.) | Isolation (dB Min.) | VSWR (Max.) | FWD Power (W Max.) | Connector |
|---|
| Part Number | Frequency(GHz) | Band Width (% Max.) | IL (dB Max.) | Isolation (dB Min.) | VSWR (Max.) | FWD Power (W Max.) | Connector |
|---|---|---|---|---|---|---|---|
| FSCC6466A | 0.03-0.04 | 5 | 2.0 | 18 | 1.30 | 100 | SMA / N |
| FSCC6060A | 0.04-0.4 | 50 | 1.8 | 18 | 1.30 | 150 | SMA |
| FSCC5258A | 0.15-0.33 | 20 | 0.90 | 18 | 1.30 | 300 | SMA / N |
| FSCC4550A | 0.25-1.4 | 40 | 0.90 | 14 | 1.60 | 300 | SMA / N |
| FSCC4149A | 0.3-1 | 50 | 1.20 | 14 | 1.60 | 100 | SMA |
| FSCC3538A | 0.3-1.85 | 30 | 0.80 | 16 | 1.40 | 300 | SMA / N |
| FSCC3033A | 0.7-2.3 | 25 | 0.60 | 18 | 1.30 | 100 | SMA |
| FSCC3232A | 0.7-2.7 | 25 | 0.60 | 18 | 1.30 | 150 | SMA |

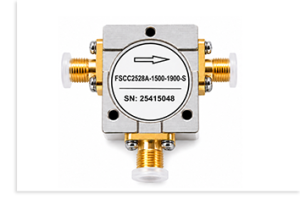

| FSCC2528A | 0.7-4.2 | 25 | 0.60 | 16 | 1.40 | 200 | SMA / N |
| FSCC5656A | 0.8-2 | Full | 1.20 | 13 | 1.60 | 50 | SMA |
| FSCC6466C | 0.95-2 | Full | 0.80 | 16 | 1.40 | 150 | SMA / N |
| FSCC5050A | 1.25-3 | 80 | 0.80 | 16 | 1.50 | 150 | SMA / N |
| FSCC4040A | 1.5-3.6 | 85 | 0.60 | 17 | 1.35 | 100 | SMA / N |
| FSCC2025A | 1.7-5.9 | 20 | 0.50 | 18 | 1.30 | 100 | SMA |
| FSCC3234B | 2-4 | Full | 0.50 | 18 | 1.30 | 150 | SMA / N |
| FSCC3030A | 2-6 | Full | 0.70 | 12 | 1.60 | 50 | SMA |
| FSCC2528B | 3-6 | Full | 0.60 | 18 | 1.30 | 100 | SMA / N |
| FSCC2123A | 4-8 | Full | 0.60 | 18 | 1.30 | 100 | SMA / N |
| FSCC1319A | 6-12 | Full | 0.70 | 15 | 1.45 | 30 | SMA |
| FSCC1620A | 6-18 | Full | 1.5 | 10 | 1.90 | 30 | SMA |
| FSCI6466A | 0.03-0.04 | 5 | 2.0 | 18 | 1.30 | 50 | SMA / N |
| FSCI6060A | 0.04-0.4 | 50 | 1.80 | 18 | 1.30 | 150 | SMA / N |
| FSCI6466B | 0.1-0.22 | 20 | 0.80 | 18 | 1.30 | 300 | SMA / N |
| FSCI5258A | 0.15-0.33 | 20 | 0.90 | 18 | 1.30 | 300 | SMA / N |
| FSCI4550A | 0.25-1.4 | 40 | 0.90 | 13 | 1.60 | 300 | SMA / N |
| FSCI4149A | 0.3-1 | 50 | 1.20 | 14 | 1.60 | 100 | SMA |
| FSCI3538A | 0.3-1.85 | 30 | 0.80 | 16 | 1.40 | 150 | SMA / N |
| FSCI3033A | 0.7-3 | 25 | 0.60 | 18 | 1.30 | 150 | SMA |
| FSCI3232A | 0.7-3 | 25 | 0.60 | 18 | 1.30 | 150 | SMA |
| FSCI2528A | 0.7-5 | 25 | 0.70 | 17 | 1.35 | 150 | SMA / N |
| FSCI2025A | 0.9-5.9 | 20 | 0.50 | 18 | 1.30 | 100 | SMA |
| FSCI6466C | 0.95-2 | Full | 0.80 | 16 | 1.40 | 150 | SMA / N |
| FSCI5050A | 1.25-3 | 65 | 0.80 | 16 | 1.50 | 150 | SMA / N |
| FSCI4040A | 1.5-3.6 | Full | 0.70 | 17 | 1.35 | 100 | SMA / N |
| FSCI3234A | 2-4 | Full | 0.50 | 18 | 1.30 | 150 | SMA / N |
| FSCI3030A | 2-6 | Full | 1.70 | 12 | 1.60 | 50 | SMA |
| FSCI6237A | 2-8 | Full | 1.70 | 13 | 1.60 | 20 | SMA |
| FSCI2528B | 3-6 | Full | 0.60 | 18 | 1.30 | 150 | SMA / N |
| FSCI2123A | 4-8 | Full | 0.60 | 18 | 1.30 | 100 | SMA |
| FSCI1623A | 5-7.4 | 20 | 0.60 | 17 | 1.30 | 100 | SMA |
| FSCI1319A | 6-13.3 | 40 | 0.60 | 10 | 1.50 | 30 | SMA |
| FSCI1622A | 6-18 | Full | 1.50 | 9.5 | 2.0 | 30 | SMA |
| FSCI1220A | 9.3-18.5 | 20 | 0.60 | 18 | 1.35 | 30 | SMA |
| FSCI1017A | 17-31 | 38 | 1.20 | 20 | 1.30 | 10 | 2.92mm |
