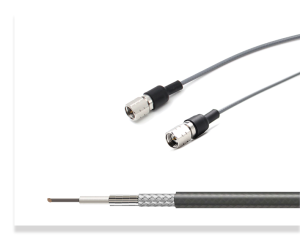

Series A
Low Loss & Phase Stable Cables & Assemblies
Fasnwave’s A Series is an RF cable and assembly line with optional enhanced (AX) and armored (AR) version, supporting up to 110 GHz with customizable lengths.
Key features:
Ultra-low loss and stable phase/amplitude
Low PIM, high power handling
Excellent temperature phase stability
Applications:
Phased array radar, Avionics, Electronic warfare, Microwave testing.
| PN | Freq.(GHz) | Max. Attn.(dB/m) | Max.Power(W) | Outer Dia.(mm) | Shielding(dB.min) | Temperature(°C) |
|---|
| PN | Freq.(GHz) | Max. Attn.(dB/m) | Max.Power(W) | Outer Dia.(mm) | Shielding(dB.min) | Temperature(°C) |
|---|---|---|---|---|---|---|
| FS150A | 40 | 7.6 | 6 | 1.50 | 90 | -55~+125 °C |
| FS220A | 40 | 4.4 | 16 | 2.20 | 90 | -55~+125 °C |
| FS360A | 40 | 2.56 | 75 | 3.60 | 90 | -55~+165 °C |
| FS400A | 40 | 2.18 | 97 | 4.00 | 90 | -55~+165 °C |
| FS500A | 26.5 | 1.28 | 207 | 5.20 | 90 | -55~+165 °C |
| FS800A | 18 | 0.67 | 507 | 7.90 | 90 | -55~+165 °C |
| FS830A | 18 | 0.61 | 532 | 8.30 | 90 | -55~+165 °C |
| FS1000A | 10 | 0.51 | 727 | 10.00 | 90 | -55~+105 °C |
| FS360AX | 40 | 2.56 | 75 | 3.90 | 90 | -55~+165 °C |
| FS400AX | 40 | 2.18 | 97 | 4.20 | 90 | -55~+165 °C |
| FS500AX | 26.5 | 1.28 | 207 | 5.40 | 90 | -55~+165 °C |
| FS750AX | 18 | 0.73 | 402 | 7.60 | 90 | -55~+165 °C |
