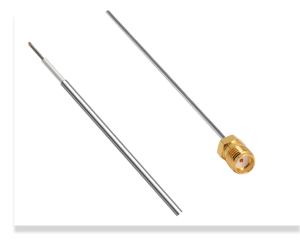

Series SR
Semi-Rigid Cables & Assemblies
Fasnwave’s SR Series offers two semi-rigid cable options—standard cost-effective SR and low-loss SR-X—supporting frequencies up to 40 GHz.
Key Features:
High shielding effectiveness
Low PIM
Low loss and low VSWR
Applications:
Board-to-board interconnect, module interconnect, airborne radar, missile-borne systems, and phased-array radar.
| PN | Freq.(GHz) | Max. Attn.(dB/m) | Max.Power(W) | Outer Dia.(mm) | Shielding(dB.min) | Temperature(°C) |
|---|
| PN | Freq.(GHz) | Max. Attn.(dB/m) | Max.Power(W) | Outer Dia.(mm) | Shielding(dB.min) | Temperature(°C) |
|---|---|---|---|---|---|---|
| FS047SR | 40 | 8.16 | 20 | 1.22 | 165 | -55~+125 °C |
| FS086SR | 40 | 4.83 | 34 | 2.18 | 165 | -55~+125 °C |
| FS086SR-X | 40 | 3.89 | 39 | 2.18 | 165 | -55~+250 °C |
| FS141SR | 26.5 | 2.49 | 172 | 3.58 | 165 | -55~+125 °C |
| FS141SR-X | 26.5 | 1.88 | 189 | 3.58 | 165 | -55~+250 °C |
| FS250SR | 18 | 1.50 | 219 | 6.35 | 165 | -55~+125 °C |
| FS250SR-X | 18 | 0.86 | 308 | 6.35 | 165 | -55~+250 °C |
