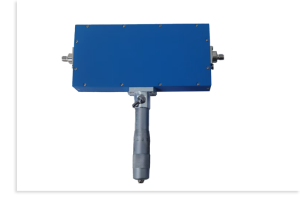

Continuously Variable attenuators
Fasnwave 50 Ω continuously variable attenuators provide broadband, high-power RF signal control up to 18 GHz, with power handling up to 300 W.Designed for smooth, continuous attenuation adjustment, the series offers multiple attenuation ranges, low VSWR, and excellent long-term stability, making it ideal for demanding RF and microwave test and system applications.
| PN | Max. Freq.(GHz) | Bandwidth | Attenuation Range(dB) | Power(CW) | Connector |
|---|
| PN | Max. Freq.(GHz) | Bandwidth | Attenuation Range(dB) | Power(CW) | Connector |
|---|---|---|---|---|---|
| FSCA1-0-2.5 | DC-2.5 | Full Band | 0~10 / 0~16 | 1 | SMA / N |
| FSCA5-2-4 | 2-4 | Full Band | 0~8 | 5 | SMA |
| FSCA5-4-8 | 4-8 | Full Band | 0~10 / 0~20 | 5 | SMA |
| FSCA5-7-10 | 7-10 | Full Band | 0~10 / 0~20 / 0~30 / 0~40 | 5 | SMA |
| FSCA5-8-12.4 | 8-12.4 | Full Band | 0~10 / 0~20 / 0~30 / 0~40 | 5 | SMA |
| FSCA5-12.4-18 | 12.4-18 | Full Band | 0~10 / 0~20 / 0~30 / 0~40 | 5 | SMA |
| FSCA10-0.5-4 | 0.5-4 | Full Band | 0~20 | 10 | N |
| FSCA10-2-18 | 2-18 | Full Band | 0~40 | 10 | SMA / N |
| FSCA50-0.9-4 | 0.9-4 | 100MHz / 200MHz | 0~10 | 50 | N |
| FSCA50-4-5 | 4-5 | 100MHz / 200MHz | 0~10 | 50 | N |
| FSCA50-9-11 | 9-11 | 100MHz / 200MHz | 0~8 | 50 | N |
| FSCA100-0.9-4 | 0.9-4 | 100MHz / 200MHz | 0~10 / 0~20 | 100 | N |
| FSCA100-4-5 | 4-5 | 100MHz / 200MHz | 0~10 / 0~15 / 0~20 / 0~30 | 100 | N |
| FSCA100-9-11 | 9-11 | 100MHz / 200MHz | 0~10 / 0~20 / 0~30 | 100 | N |
| FSCA300-0.9-4 | 0.9-4 | 100MHz / 200MHz | 0~10 / 0~20 | 300 | N |
| FSCA300-4-5 | 4-5 | 100MHz / 200MHz | 0~10 / 0~20 | 300 | N |
| FSCA300-9-11 | 9-11 | 100MHz / 200MHz | 0~10 / 0~15 | 300 | N |
