Coaxial Limiters
Fasnwave coaxial limiters are available up to 18 GHz, with both low-level and high-level limiter options. They provide low insertion loss and reliable protection against excessive RF input power, with various CW and pulsed power handling capabilities. Custom frequency ranges, limiting levels, leakage levels, power handling, and connector options are available.
| Part Number | Frequency (GHz) | IL (dB Max.) | Flat Leakage (dBm Typ.) | CW Power (dBm Max.) | Connector |
|---|
| Part Number | Frequency (GHz) | IL (dB Max.) | Flat Leakage (dBm Typ.) | CW Power (dBm Max.) | Connector |
|---|---|---|---|---|---|

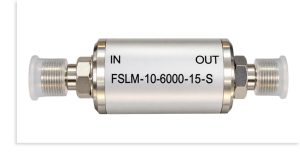

| FSLM-10-6000-15-S | 0.01-6 | 0.6 | 15 | 37 | SMA |
| FSLM-10-10000-15-S | 0.01-10 | 0.7 | 15 | 37 | SMA |
