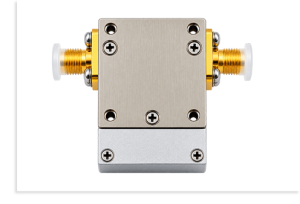

Coaxial Isolators
Fasnwave RF and microwave isolators provide low insertion loss, high isolation, low VSWR, and high power handling. Available up to 40 GHz, they are ideal for protecting RF components from reflected power. Custom designs are available upon request.
| Part Number | Frequency(GHz) | Band Width (% Max.) | IL (dB Max.) | Isolation (dB Min.) | VSWR (Max.) | FWD Power (W Max.) | REV Power (W Max.) | Connector |
|---|
| Part Number | Frequency(GHz) | Band Width (% Max.) | IL (dB Max.) | Isolation (dB Min.) | VSWR (Max.) | FWD Power (W Max.) | REV Power (W Max.) | Connector |
|---|---|---|---|---|---|---|---|---|
| FSCI6466A | 0.03-0.04 | 5 | 2.0 | 18 | 1.30 | 50 | 50 | SMA / N |
| FSCI6060A | 0.04-0.4 | 50 | 1.80 | 18 | 1.30 | 150 | 100 | SMA / N |
| FSCI6466B | 0.1-0.22 | 20 | 0.80 | 18 | 1.30 | 300 | 20 / 100 | SMA / N |
| FSCI5258A | 0.15-0.33 | 20 | 0.90 | 18 | 1.30 | 300 | 20 / 100 | SMA / N |
| FSCI4550A | 0.25-1.4 | 40 | 0.90 | 13 | 1.60 | 300 | 20 / 100 | SMA / N |
| FSCI4149A | 0.3-1 | 50 | 1.20 | 14 | 1.60 | 100 | 20 | SMA |
| FSCI3538A | 0.3-1.85 | 30 | 0.80 | 16 | 1.40 | 150 | 20 / 100 | SMA / N |
| FSCI3033A | 0.7-3 | 25 | 0.60 | 18 | 1.30 | 150 | 20 / 100 | SMA |
| FSCI3232A | 0.7-3 | 25 | 0.60 | 18 | 1.30 | 150 | 20 / 100 | SMA |
| FSCI2528A | 0.7-5 | 25 | 0.70 | 17 | 1.35 | 150 | 20 / 100 | SMA / N |
| FSCI2025A | 0.9-5.9 | 20 | 0.50 | 18 | 1.30 | 100 | 20 / 100 | SMA |
| FSCI6466C | 0.95-2 | Full | 0.80 | 16 | 1.40 | 150 | 100 | SMA / N |
| FSCI5050A | 1.25-3 | 65 | 0.80 | 16 | 1.50 | 150 | 20 | SMA / N |
| FSCI4040A | 1.5-3.6 | Full | 0.70 | 17 | 1.35 | 100 | 20 / 100 | SMA / N |
| FSCI3234A | 2-4 | Full | 0.50 | 18 | 1.30 | 150 | 20 / 100 | SMA / N |
| FSCI3030A | 2-6 | Full | 1.70 | 12 | 1.60 | 50 | 20 | SMA |
| FSCI6237A | 2-8 | Full | 1.70 | 13 | 1.60 | 20 | 10 | SMA |
| FSCI2528B | 3-6 | Full | 0.60 | 18 | 1.30 | 150 | 20 / 100 | SMA / N |
| FSCI2123A | 4-8 | Full | 0.60 | 18 | 1.30 | 100 | 20 | SMA |
| FSCI1623A | 5-7.4 | 20 | 0.60 | 17 | 1.30 | 100 | 10 | SMA |
| FSCI1319A | 6-13.3 | 40 | 0.60 | 10 | 1.50 | 30 | 10 | SMA |
| FSCI1622A | 6-18 | Full | 1.50 | 9.5 | 2.0 | 30 | 10 | SMA |
| FSCI1220A | 9.3-18.5 | 20 | 0.60 | 18 | 1.35 | 30 | 10 | SMA |
| FSCI1017A | 17-31 | 38 | 1.20 | 20 | 1.30 | 10 | 2 | 2.92mm |
