Military Cavity filters in Passband 18200MHz± 500MHz
Our this series cavity filters utilize rectangular or cylindrical metal-rod resonance oscillation with coaxial cavity, interdigital, or combline coupling structures. High-quality factor (high-Q) capacitive loading is integrated to ensure superior power handling performance. The resonance cavity length is less than one-quarter wavelength along with compact size, long Parasitic pass band distance and low insertion loss. They comply with the testing procedures and environmental conditions specified in China’s GJB military standards. Ideal for 5G, satellite communications, military radar, and test equipment, our cavity filters deliver unmatched performance in critical RF applications.

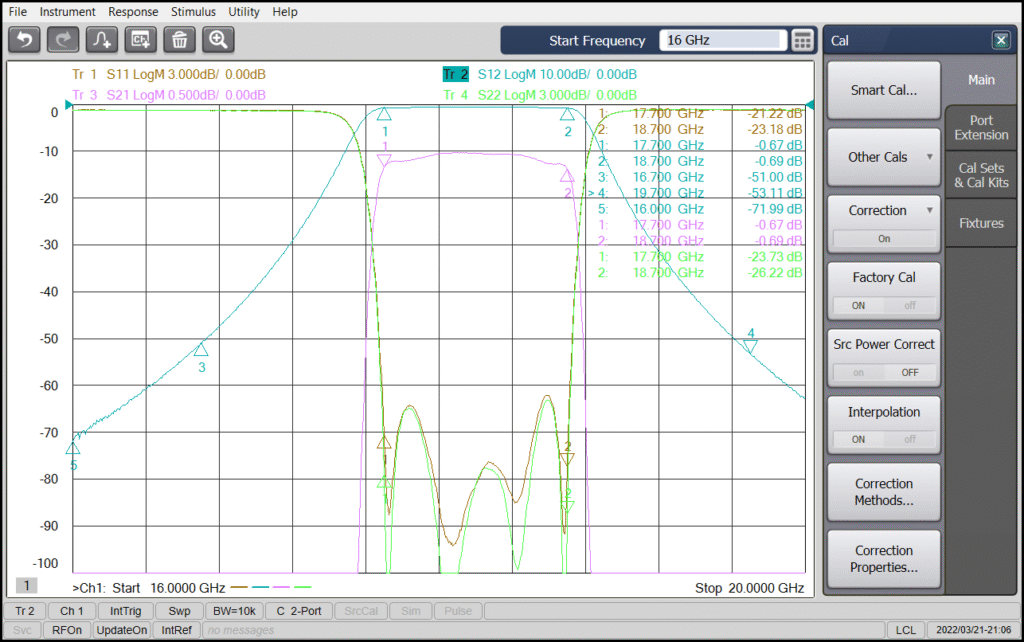

Electrical Characteristics:
Pass band Frequency: 17700~18700MHz
Insertion Loss: ≤1.5dB
Ripple: ≤0.7dB
Return Loss: ≥15dB
Rejection: ≥45@DC~16700MHz; ≥45dB@19700~22000MHz
Group delay variation: 1.2ns
Power Handling 5W
Environmental & Mechanical Characteristics:
Operating Temperature: -25 °C to +70°C
Environmental Class: Indoor
Connectors: SMA-Female
Surface Finishing: Silver Plating
