Fasnwave has developed a customized high-power 8-way RF combiner operating from 420 to 450 MHz, designed for RF systems requiring high power handling, low insertion loss, excellent amplitude and phase balance, and reliable operation in harsh environments.
The combiner features a rugged IP66-rated enclosure with high shielding effectiveness and is designed to meet Military-Grade environmental requirements of GJB 360B.
Key Specifications
| Parameter | Specification |
|---|---|
| Frequency Range | 420–450 MHz |
| Insertion Loss | ≤1.2 dB, excluding theoretical combining loss |
| Isolation | ≥20 dB |
| Input VSWR | ≤1.20:1 |
| Output VSWR | ≤1.35:1 |
| Phase Balance | ≤±3° |
| Amplitude Balance | ≤±0.3 dB |
| Power Handling | 33 W per input port |
| Common Port Power | 150 W |
| Peak Power | 130 W per input port |
| Common Port Peak Power | 500 W |
| Impedance | 50 Ω |
| Protection Rating | IP66 |
High-Power and Rugged Design
The combiner is designed to handle 33 W continuous power per input port, with 150 W power handling at the common port. For pulsed or peak-power applications, it supports up to 130 W per input port and 500 W at the common port.
In addition to its RF performance, the unit incorporates a high-shielding enclosure to minimize RF leakage and interference. The IP66-rated mechanical design provides protection against dust and water ingress, making the combiner suitable for demanding outdoor and harsh-environment applications.
RF Performance Verification

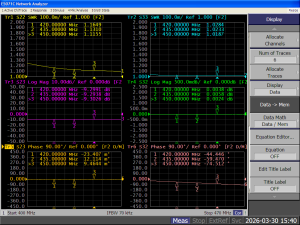

Each unit is tested to verify key RF parameters, including insertion loss, VSWR, isolation, amplitude balance, and phase balance across the specified frequency range.
Custom RF Power Divider and Combiner Solutions
Fasnwave provides customized RF power dividers and combiners for applications where standard off-the-shelf products cannot meet specific electrical, mechanical, power, or environmental requirements.
