Reliable Performance for Demanding RF and Microwave Test Environments

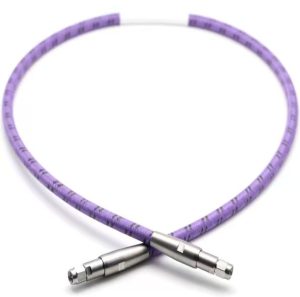

In RF testing and microwave systems where signal integrity and transmission accuracy are critical, Fasnwave introduces the High-Precision Armored RF Cable Assembly Series — engineered with an integrated armored design and exceptional electrical and mechanical performance, making it a trusted solution for the most demanding applications.
The series includes models such as FS18TR, FS26TR, FS50TR, FS67TR, and FS110TR, fully covering high-frequency test requirements up to 110 GHz.
1、Rugged and Durable – Engineered for Harsh Environments
Fasnwave armored cables feature a one-piece armored outer structure that provides outstanding tensile and torsional strength, ideal for use in robotic arms, drag chains, rotary test tables, and other dynamic environments.
The FS26TR model achieves a bending life of up to 600,000 cycles, and all models support over 2,000 mating cycles, exceeding industry standards.
Even under extreme temperature variations or continuous vibration, the cables ensure stable signal transmission, acting as a reliable guardian in high-frequency testing.
2、Superior Electrical Performance – Precision Signal Transmission
The Fasnwave armored cable assemblies deliver excellent electrical characteristics to guarantee high-accuracy and stable RF performance:
- VSWR: ≤ 1.25 @ 50 GHz / ≤ 1.35 @ 67 GHz / ≤ 1.50 @ 110 GHz
- Amplitude Stability: ± 0.03 dB @ 50 GHz / ± 0.05 dB @ 110 GHz
- Mechanical Phase Stability: ± 1.5° @ 26.5 GHz / ± 5° @ 67 GHz / ± 10° @ 110 GHz
- Frequency Range: DC– 110 GHz
All models maintain 50 Ω characteristic impedance and shielding effectiveness better than –120 dB, minimizing interference and ensuring clean, lossless signal transmission.
3、Flexible Integration Across Applications
Fasnwave armored RF cable assemblies are widely used in millimeter-wave radar, satellite communication, vector network analyzers (VNA), and other high-precision test systems.
They perform reliably under temperature cycling, vibration, and mechanical stress, ensuring long-term stability in R&D labs, production testing, and industrial automation.
The series supports multiple connector types including 1.0mm、1.85mm、2.4mm, 3.5mm, N-type, SMA…, enabling easy integration into diverse test setups and equipment.
4、Reliable Partner for Next-Generation RF Systems
With the rapid development of 5G, millimeter-wave, and industrial automation technologies, Fasnwave’s high-precision, highly reliable, and versatile armored RF cable series provides a comprehensive interconnect solution for advanced RF testing and signal transmission applications.
If you are looking for a high-performance cable capable of delivering consistent and stable results under complex conditions, the Fasnwave TR Series Armored Cables are your ideal choice.
Contact us to learn more — our team is ready to provide professional technical support and help you enhance your system performance.
